DCP8568

Left Channel: AK4191+AK4499

Right Channel: AK4191+AK4499

Multi-core USB audio processor

OPA1612

Triple ultra-low noise linear power supplies

Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols

Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit

Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Up to Stereo PCM 192KHz/24Bit

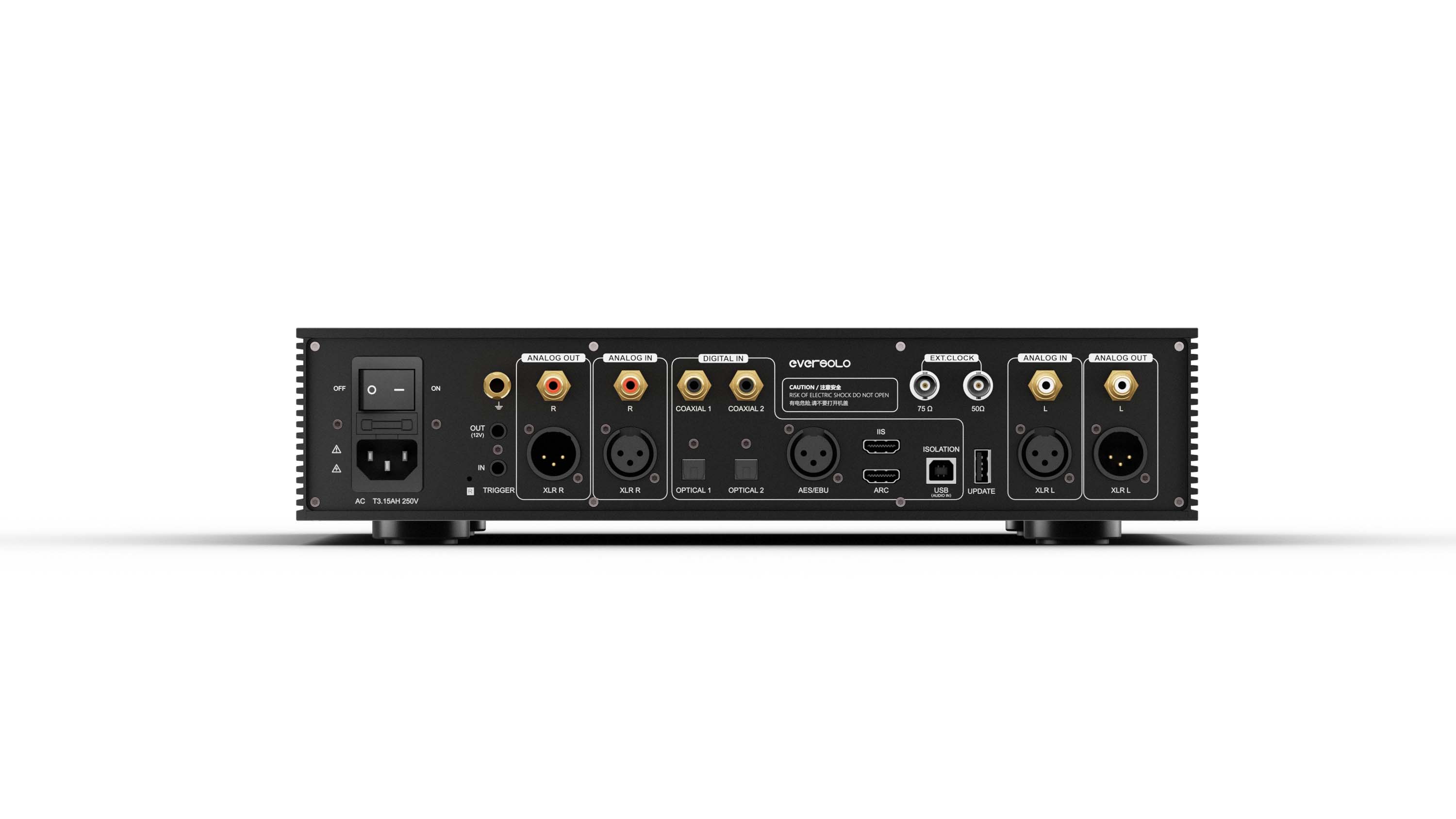

XLR (Balanced), RCA

Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

Supports 10M/25M clock inputs with 50Ω or 75Ω impedance

16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

Output Level (Vrms): 5Vrms @ 0dBFS

THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)

Noise @ No-wt: <1.2uVrms

SNR @ A-wt: 130dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -130dB

DNR @ A-wt: 130dB

Output Level (Vrms): 2.5Vrms @ 0dBFS

THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)

Noise @ No-wt: <1.5uVrms

SNR @ A-wt: 128dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -123dB

DNR @ A-wt: 128dB

Output Level (Vrms): 4Vrms @ 0dBFS

THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 124dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 124dB
