Description

specs

• Number of Power Amps 13
• Power Output 150 watts per channel
  (8 ohm, 20Hz – 20kHz,0.05% 2ch Drive)190 watts per channel
  (6 ohm, 1kHz, 0.7% 2ch Drive)190 watts per channel
  (6 ohm, 1kHz, 1% 1ch Drive)210 watts per channel
  (6 ohm, 1kHz,10% 1ch Drive)

• System Remote Control RC-1261
• Power Consumption in W 900W
• Power Consumption No-Sound (ECO on/off) in W 70W/125W
• Standby Consumption in W 0.1W
• CEC Standby Consumption in W 0.5W
• Network Standby Consumption in W Less than 2.0W
• Maximum Dimensions
  Antenna, Horizontal:
  (W × D × H) in mm 434 × 482 × 195
• Maximum Dimensions
  Antenna, Vertical:
  (W × D × H) in mm 434 × 482 × 259
• Maximum Dimensions
  Antenna, w/o Antenna:
  (W × D × H) in mm 434 × 472 × 195
• Weight in kg 23.6 kg

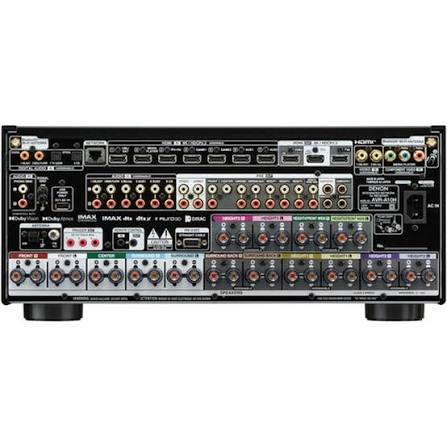

• HDMI In/Out 7/3
• Analog In/Out 7+1 / 0
• Phono (MM) In Yes
• Digital In: Optical / Coaxial 2 / 2
• Multi-Room Out: Analog / Digital 2 / 0
• Multichannel Pre-Out Yes (15.4)
• Subwoofer Out 4 (independent)
