Sale!

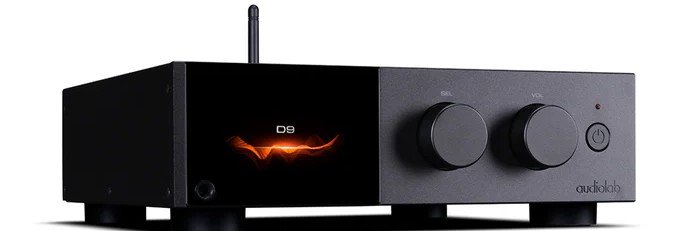

AUDIOLAB D9 DAC

5,250.00SAR

32-bit DAC
MQA Full decoder (PC USB, Coax / Optical)
2.8″ 480×640 large size full view IPS LCD
Bluetooth 5.1 (aptX / aptX HD / LDAC) streaming

2 in stock

Categories: , Tag:

Description

General Description DAC
Design Philosophy and Core Technology ES9038Pro 32-bit DAC
MQA Full decoder (PC USB, Coax / Optical)
2.8″ 480×640 large size full view IPS LCD
Bluetooth 5.1 (aptX / aptX HD / LDAC) streaming
Dedicated Current-Feedback Headphone Amp
VU Digital / VU Analogue Meter
USB HDD Playback with MP3/WMA/AAC/WAV/FLAC/APE compatibility
USB Firmware Upgrade

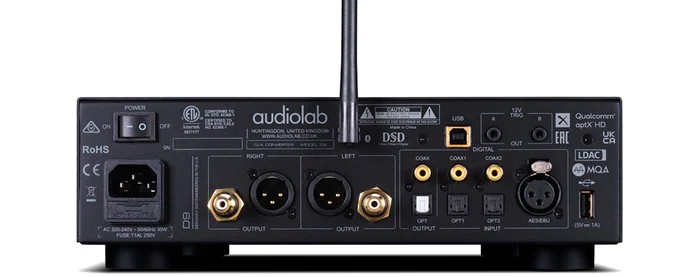

Inputs 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),
1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD), 1 x AES3/EBU
Outputs 1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x COAX outputs
Sampling Frequency Optical/Coaxial: 44.1kHz → 192kHz
USB HDD: 44.1kHz → 96kHz
PC USB: 44.1kHz → 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
DAC
D to A Converter ES9038Pro
Output Level (0dBFS, 1kHz) 2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD) < 0.001% (1kHz @ 0dBFS)
Frequency Response 20Hz–20kHz (+/-0.1dB)
Output Impedance Not specified
Max. Sampling Frequency USB HDD: 96kHz
Optical, Coaxial: 192kHz
PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N) > 118dB (A-weighted, RCA)
> 123dB (A-weighted, XLR)
Headphone Amplifier
Total Harmonic Distortion(THD) < 0.01% (1kHz, 50mW )
Output Impedance 2.35 ohm
Load Impedance 20-600 ohm
General
Standby Power Consumption <0.5W
Net Weight 4.2 kg
Gross Weight 5.8 kg

Additional information

Weight 10 kg
