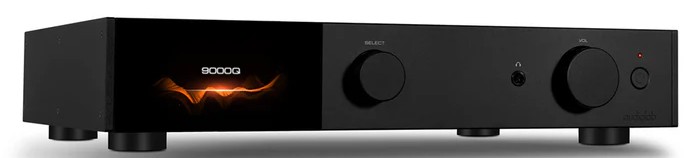

audiolab 9000q preamplifier / dac

7,500.00SAR

Designed to be the dedicated management of a multi-source, multi-format, hi-fi system, the 9000Q caters for analogue and digital sources with 3 x line level AUX inputs, a balanced XLR stereo pair, a dedicated phono input , as well as 2 x COAX (S/PDIF up to192kHz 24Bit), 2 x Optical (S/PDIF up to 192kHz 24Bit), a Bluetooth 5.1 receiver and a PC USB input.

2 in stock

Categories: , Tag:

Description

General Description Preamplifier
Design Philosophy and Core Technology ES9038Pro 32-bit DAC
MQA Full decoder (PC USB, Coax/Optical)
4.3” 800 x 480 IPS LCD
Bluetooth 5.1 (aptX/aptX HD/LDAC) streaming
Dedicated Current-Feedback Headphone Amp
Dedicated High Performance Low Noise MM Phono stage

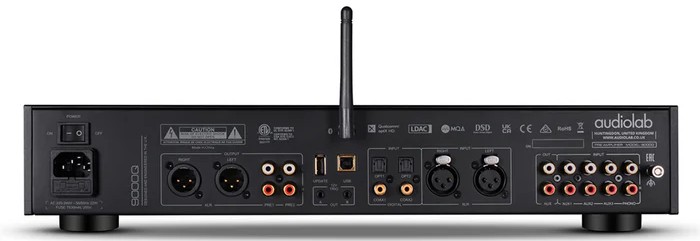

Inputs 3 x Analogue, 1 x XLR, 1 x Phono (MM)
2 x SPDIF (Coax), 2 x SPDIF (Optical)
1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC)
Outputs 2 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger
Sampling Frequency Optical/Coaxial: 44.1-192kHz
Sampling Frequency
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD5, DSD512
Preamp / DAC
D to A Converter ES9038Pro
Input Sensitivity 1Vrms (Line, Volume = 0dB)
2Vrms (XLR, Volume = 0dB)
4.5mV (Phono MM, Volume = 0dB)
Total Harmonic Distortion (THD) < 0.001% (1KHz @ 0dBFS)
Frequency Response 20Hz – 20kHz (+/-0.1dB)
Output lmpedance 120 ohm
Max.Sampling Frequency Optical, Coaxial: 192KHz
PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N) > 113dB (A-weighted, RCA)
> 117dB (A-weighted, XLR Direct)
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW )
Output lmpedance 2.35 ohm
Load lmpedance 20-600 ohm
General
Standby Power Consumption <0.5W
Net Weight 6.2kg
Gross Weight 8kg

Additional information

Weight 15 kg
