AUDIOLAB D9 DAC

saher — Tue, 09 Dec 2025 05:11:17 +0000

General Description	DAC
Design Philosophy and Core Technology	ES9038Pro 32-bit DAC MQA Full decoder (PC USB, Coax / Optical) 2.8″ 480×640 large size full view IPS LCD Bluetooth 5.1 (aptX / aptX HD / LDAC) streaming Dedicated Current-Feedback Headphone Amp VU Digital / VU Analogue Meter USB HDD Playback with MP3/WMA/AAC/WAV/FLAC/APE compatibility USB Firmware Upgrade
Inputs	2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD), 1 x AES3/EBU
Outputs	1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x COAX outputs
Sampling Frequency	Optical/Coaxial: 44.1kHz → 192kHz USB HDD: 44.1kHz → 96kHz PC USB: 44.1kHz → 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
DAC
D to A Converter	ES9038Pro
Output Level (0dBFS, 1kHz)	2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD)	< 0.001% (1kHz @ 0dBFS)
Frequency Response	20Hz–20kHz (+/-0.1dB)
Output Impedance	Not specified
Max. Sampling Frequency	USB HDD: 96kHz Optical, Coaxial: 192kHz PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N)	> 118dB (A-weighted, RCA) > 123dB (A-weighted, XLR)
Headphone Amplifier
Total Harmonic Distortion(THD)	< 0.01% (1kHz, 50mW )
Output Impedance	2.35 ohm
Load Impedance	20-600 ohm
General
Standby Power Consumption	<0.5W
Net Weight	4.2 kg
Gross Weight	5.8 kg

AUDIOLAB D7 DAC

saher — Tue, 09 Dec 2025 05:00:30 +0000

General Description	DAC
Design Philosophy and Core Technology	ES9038Q2M 32-bit DAC MQA Full decoder (PC USB, Coax / Optical) OLED Display Bluetooth 5.1 (aptX / aptX HD) streaming Dedicated Current-Feedback Headphone Amp Supports playing USB memory device (MP3 / WMA / APE / AAC / WAV / FLAC) USB Firmware Upgrade
Inputs	2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD)
Outputs	1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x Coax
Sampling Frequency	Optical/Coaxial: 44.1kHz–192kHz USB HDD: 44.1kHz–96kHz PC USB: 44.1kHz–768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
DAC
D to A Converter	ES9038Q2M
Output Level (0dBFS, 1kHz)	2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD)	< 0.001% (1KHz @ 0dBFS)
Frequency Response	20Hz-20kHz (+/-0.2dB)
Output Impedance	120 ohm
Max. Sampling Frequency	USB HDD: 96KHz Optical,Coaxial: 192KHz PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N)	> 115dB (A-weighted, RCA) > 117dB (A-weighted, XLR)
Headphone Amplifier
Total Harmonic Distortion(THD)	< 0.01% (1kHz, 50mW )
Output Impedance	2.35 ohm
Load Impedance	20-600 ohm
General
Standby Power Consumption	<0.5W
Net Weight	1.42 kg
Gross Weight	2.2 kg

audiolab 6000cdt cd transport

saher — Mon, 08 Dec 2025 22:27:02 +0000

Digital Output Voltage Level	600±50mVpp
Frequency response	<0.01dB @ 20-20kHz
Output Impedance	75±1Ω
Max Sampling Rate	44.1 kHz
Max. Power Consumption	15W
Standby Power Consumption	<0.5W

EVERSOLO T8 Professional-grade Streaming Transport

saher — Wed, 12 Nov 2025 22:26:00 +0000

Model T8

Display

6” LCD Touchscreen

Internal Memory

4G DDR4 +64G eMMC

USB Ports

USB3.0*2

Ethernet

RJ-45(10/100/1000Mbps)

Wi-Fi

Wi-Fi 6 (2.4G+5G dual band)

SFP Fiber Network

SFP modules are not included. Supports single-mode single-fiber, single-mode dual-fiber optical modules, and SFP network communication modules.

Playback & Decoding

Supports up to stereo DSD512 and PCM 768kHz 32-bit.

Supported Music Formats

DSD(DSF,DFF,SACD ISO Support DST up to DSD512), MP3,APE,WAV,FLAC,AIF,AIFF,AAC,NRG,CUE

Music Services

TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc.

Music Streaming

Roon Ready, TIDAL Connect,Qobuz connect, DLNA etc,.

Control Methods

On-screen touch control, Android/iPhone/iPad APP control/Android TV

Supported Protocols

UPnP, NAS, SMB

USB Audio Output

Supports up to stereo DSD512 Native and PCM 768kHz 32-bit (only compatible with DACs that support the UAC standard).

IIS Audio Output

Supports 8 output mode options. Supports up to stereo DSD512 Native and PCM 768kHz 32-bit.

Coaxial Output

Supports up to stereo PCM 192kHz 24-bit and DoP64.

Optical Output

Supports up to stereo PCM 192kHz 24-bit and DoP64.

AES/EBU Output

Supports up to stereo PCM 192kHz 24-bit and DoP64.

Power Supply & Rated Power

AC 110–240V, 50/60Hz Power consumption: 20W

Included Accessories

Power cable ×1,TRIGGER cable ×1, Remote control ×1, User manual ×1, Polishing cloth ×1

Dimensions

L 315mm * W 230mm * H 88mm

Weight

Net Weight 4.5Kg

Eversolo DAC-Z10 – DAC / PRE AMPLIFIER

saher — Wed, 12 Nov 2025 22:03:05 +0000

Main Processor

DCP8568

DAC

Left Channel: AK4191+AK4499

Right Channel: AK4191+AK4499

Audio Processor

Multi-core USB audio processor

OPA Chip

OPA1612

Power

Triple ultra-low noise linear power supplies

Bluetooth Audio Input

Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols

USB-B Audio Input

Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit

IIS Input

Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

AES/EBU Input

Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Optical Audio Inputs *2

Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Coaxial Audio Inputs *2

Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

ARC Input

Up to Stereo PCM 192KHz/24Bit

Analog Audio Inputs

XLR (Balanced), RCA

Analog Audio Outputs

Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

External Clock Input

Supports 10M/25M clock inputs with 50Ω or 75Ω impedance

Recommended Headphone Impedance

16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

XLR Output Audio Characteristics

Output Level (Vrms): 5Vrms @ 0dBFS

THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)

Noise @ No-wt: <1.2uVrms

SNR @ A-wt: 130dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -130dB

DNR @ A-wt: 130dB

RCA Output Audio Characteristics

Output Level (Vrms): 2.5Vrms @ 0dBFS

THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)

Noise @ No-wt: <1.5uVrms

SNR @ A-wt: 128dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -123dB

DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode)

Output Level (Vrms): 4Vrms @ 0dBFS

THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 124dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 124dB

Power Supply

AC 110~240V 50/60Hz

USB Port

USB2.0*1（only for firmware upgrade）

Control Methods

Touchscreen control, remote control, mobile App control

Rated Power Consumption

32W

Packing List

Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1

eversolo DMP-A6 Master Edition Gen 2 dac / Music Streamer

saher — Wed, 05 Nov 2025 22:08:49 +0000

The Eversolo DMP-A6 Master Edition Gen 2 is a Hi-Fi streamer that seamlessly blends exceptional sound quality with cutting-edge technology.

Model

EVERSOLO DMP-A6 Master Edition Gen 2

Display

6-inch LCD Touchscreen

Internal Memory

4GDDR4 +32G eMMC

DAC

ES 9038Q2M*2

Op-amp Chip

OPA1612

Power Supply

Low Noise, High-Quality Linear Power Supply

Built-in SSD Slot

M.2 NVME 3.0 2280 Interface Protocol, Supports up to 8TB

USB-A Ports

USB3.0*2

Ethernet

RJ-45 (10/100/1000Mbps)

Wireless Network

WiFi 2.4G+5G Dual-Band

Music Playback and DAC Decoding

Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format

Music Services

TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music*…

Network Protocol

WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex…

Streaming

Roon Ready, DLNA, TIDAL Connect…

Control Methods

Mobile App Control, Touchscreen Control, Tablet App Control,TRIGGER OUT,WOL

Bluetooth Audio Input

Bluetooth BT5.0, Supports SBC/AAC

USB-B Audio Input

USB Audio Compatibility: Windows (10, 11), Mac, Android, iOS

Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format

Optical/Coaxial Audio Input

Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format

HDMI ARC Input

Supports up to Stereo PCM 192KHz/24Bit

USB Audio Output

Supports up to Stereo DSD512 Native, PCM 768KHz 32Bit, MQA Format

HDMI Audio Output

DSD64 Native multichannel/PCM 192KHz multichannel raw output,up to 5.1

Optical/Coaxial Audio Output

Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format

Analog Audio Output

Pre-output: XLR (Balanced) + RCA(UnBalanced)

XLR Output Audio Characteristics

Output Level: 5.2V

Frequency Response: 20Hz~20KHz (±0.15dB)

Dynamic Range: >128dB

SNR: >128dB @A-wt

THD+N: <0.000087%(-121dB)

Crosstalk: >-125dB

RCA Output Audio Characteristics

Output Level: 2.6V

Frequency Response: 20Hz~20KHz (±0.2dB)

Dynamic Range: >125dB

SNR: >125dB @A-wt

THD+N: <0.0001%(-120dB)

Crosstalk: >-124dB

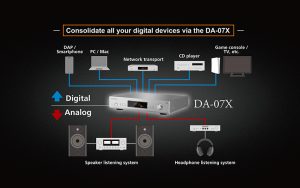

LUXMAN USB D/A CONVERTERS DA-07X

saher — Wed, 05 Nov 2025 16:08:35 +0000

As high-resolution music distribution and high-quality audio streaming services become more commonplace, LUXMAN unveils our new USB equipped D/A converter, the DA-07X, fully compatible with today’s diversifying digital music ecosystem

Supported sampling frequency	USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) Coaxial / Optical / AES/EBU input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)

luxman music streaming transport NT-07

saher — Wed, 05 Nov 2025 15:59:14 +0000

Spec

Digital input	Network : 1000 Base-T (gigabit · ethernet) HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
Digital output	USB (USB2.0), OPT, COAX HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
Storage connection	USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS)
Supported sampling frequencies	USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit) DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit) COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit)
Corresponding format formats	WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)

chord Hugo TT 2 – black

saher — Sun, 20 Oct 2024 06:25:04 +0000

Dynamic range

127dB ‘A’ weighted

Noise

4 uV ‘A’ weighted (high gain), 1.7 uV ‘A’ weighted (low gain) with no measurable noise floor modulation

Distortion

0.00008% @ 2.5 V 300Ω; 0.00016% @ 6 W 8Ω

Output power (unbalanced)

(@1% THD) 288 mW RMS 300Ω; 7.3 W RMS 8Ω

Output power (balanced)

(@1% THD) 1.15 W RMS 300Ω; 18W RMS 8Ω

Power consumption:

Full power – 30 W

Output impedance 0.042Ω

NAIM AUDIO NSS 333 Audiophiles’ favourite high-resolution streamer

saher — Fri, 08 Mar 2024 18:09:53 +0000

SPECIFICATIONS :

Product Type	Streamer
Control	App control (iOS and Android), bi-directional ZigBee remote and front panel. Control of NAC 332 via ZigBee Optical 3.5mm output for synchronised control of compatible products e.g. NAP 250/350

Audio Inputs
Digital (S/PDIF)	2 x Optical TOSLINK (up to 24bit/96kHz) 1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs) 1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)

Audio Outputs
Distortion	Digital: 0.002% @0dBFS, 1kHz, volume at 0dB, 1kHz
Distortion	0.002% @0dBFS, 1kHz
Crosstalk	Digital: 94dB at 1kHz, volume at 0dB
Analogue	1 x XLR pair (balanced, 2.1Vrms) 1 x RCA pair (2.1Vrms) 1 x 5-pin DIN
Digital (S/PDIF)	1 x coaxial BNC (up to 24bit 192kHz)
Signal-to-Noise Ratio	Digital: 108dB ref 0dBFS A-wtd, volume at 0dB
Frequency Response	Digital: 3Hz to 27kHz -3dB

Formats
Audio Formats	WAV – up to 32bit/384kHz FLAC and AIFF – up to 24bit/384Hz ALAC (Apple Lossless) – up to 24bit/384Hz MP3 – up to 48kHz, 320kbit (16 bit) AAC – up to 48kHz, 320kbit (16 bit) OGG and WMA – up to 48kHz (16 bit) DSD – 64 and 128Fs M4A – up to 48kHz, 320kbit (16 bit) Gapless playback supported on all formats

Physical
Weight	24.25lbs (11kg)
Dimensions (HxWxD)	35/8x17x121/2″ (9.15×43.2×31.75cm)

Power
Mains Supply	115V or 230V, 50/60Hz
Power Consumption	Typical use consumption: 25W Network standby mode consumption: <2W Standby mode consumption: <0.5W

Streaming and Ripping
Network Storage	Ethernet (10/100Mbps), Wi-Fi (802.11 b/g/n/ac)
USB	2 x USB Type A socket (front and rear – 1.6A charge)
